Product Introduction
Pioneering in the industry, our portable flexible transparent film screen is autonomously developed with lamp-driver integration, providing high reliability through mini-class LEDs. Its transparency over 90% doesn't hinder glass light. Installing is easy-no steel structure needed; just stick the thin screen and link power signals. It's flexible for any surface, ultra-light (5kg/㎡) and thin (2.0mm). UV resistance prevents yellowing for 5-10 years, while V1 flame retardancy and seamless splicing make it a reliable, client-focused solution.

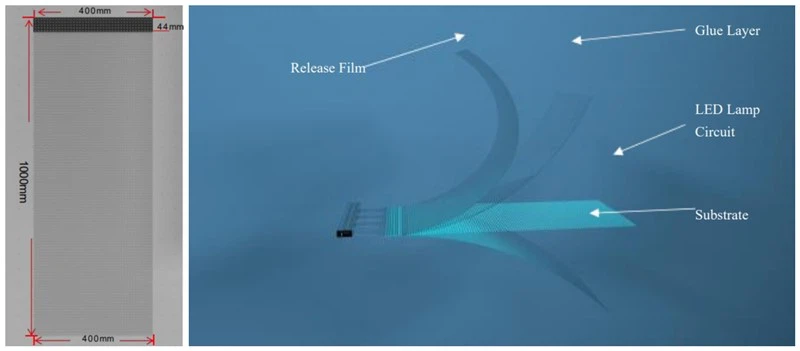

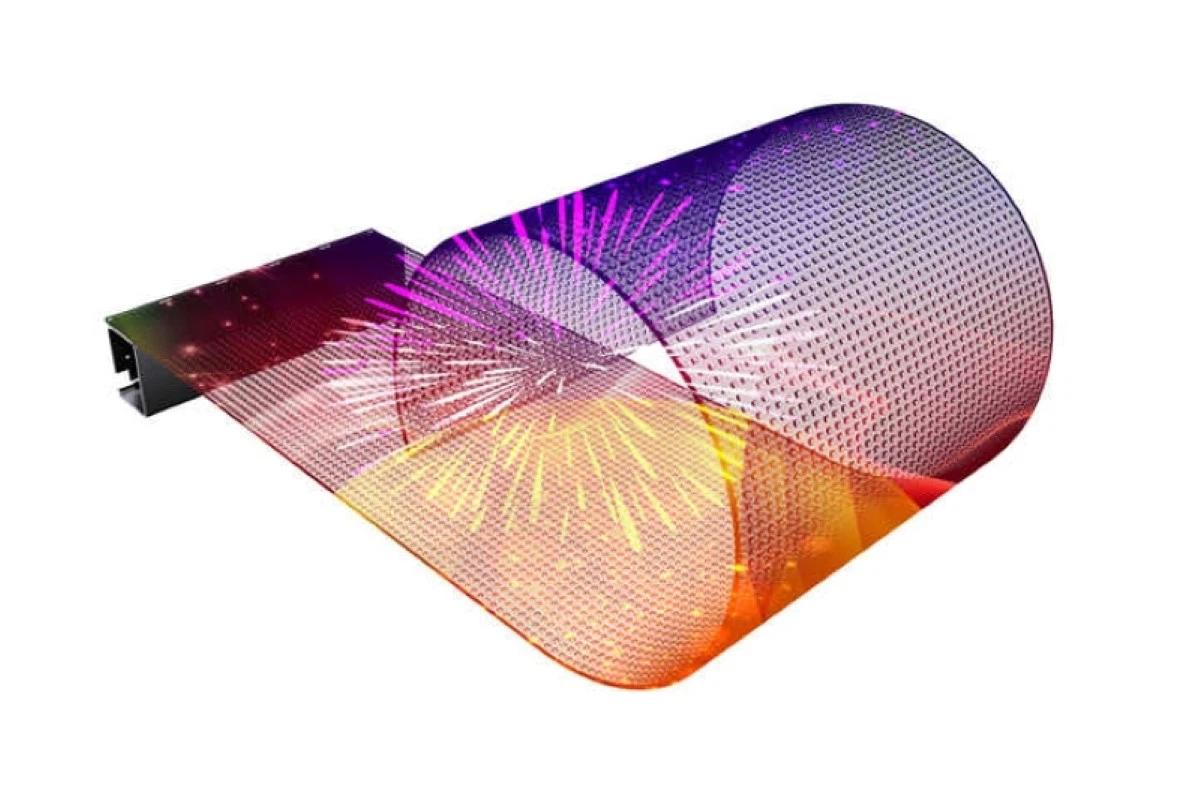

The P20 portable flexible transparent film screen, sized 1000*400mm, is easy to carry for mobile use. Its flexibility adapts to curved surfaces, and transparency preserves clear views-perfect for pop-ups, temporary exhibitions, merging vivid displays with surroundings smoothly.
Product Specification
|
Model |
P5 |
P6.25 |
P8 |
P10 |
P15 |
P20 |
|
Module size(mm) |
320*1000 |
400*1000 |
400*1000 |
400*1000 |
390*990 |
1000*400 |
|
LED Lamp |
REE :1313 |
REE :1313/2121 |
REE :1313/2121 |
REE :1313/2121 |
REE2121 |
REE2121 |
|
Brightness cd/㎡ |
2500 |
2000/4000 |
2000/4000 |
2000/4000 |
2000/4000 |
2000/4000 |
|
Pixel Composition |
R1G1B1 |
R1G1B1 |
R1G1B1 |
R1G1B1 |
R1G1B1 |
R1G1B1 |
|
Pixel Pitch(mm) |
5*5 |
6.25*6.25 |
8*8 |
10*10 |
15*15 |
20*20 |
|
Module Pixels |
200*64 =12800 |
160*64 =10240 |
125* 50 = 6250 |
100*40 =4000 |
66*26 = 1716 |
50*20 = 1000 |
|
Pixels/㎡ |
40000 |
25600 |
15625 |
10000 |
4356 |
2500 |
|
Transparency Rate |
90% |
92% |
92% |
94% |
94% |
95% |
|
Viewing Angle (°) |
160 |
160 |
160 |
160 |
160 |
160 |
|
Input Voltage |
AC100-240V50/ 60Hz |
|||||
|
Peak Power |
600w/㎡ |
600w/㎡ |
600w/㎡ |
600w/㎡ |
600w/㎡ |
600w/㎡ |
|
Average Power |
200w/㎡ |
200w/㎡ |
200w/㎡ |
200w/㎡ |
200w/㎡ |
200w/㎡ |
|
Weight |
2 kg |
1.3 kg |
1.3 kg |
1.3 kg |
1.3 kg |
1.3 kg |
|
Thickness |
2.0mm |
2.0mm |
2.0mm |
2.0mm |
2.0mm |
2.0mm |
|
Driving Mode |
Static |
Static |
Static |
Static |
Static |
Static |
|
Control System |
Nova star/Color light |
|||||
|
Typical Service Life |
100000H |
100000H |
100000H |
100000H |
100000H |
100000H |
|
Gray Scale Level |
16bit |
16bit |
16bit |
16bit |
16bit |
16bit |
|
Refresh Rate |
3840 Hz |
3840 Hz |
3840 Hz |
3840 Hz |
3840 Hz |
3840 Hz |
Product Advantages

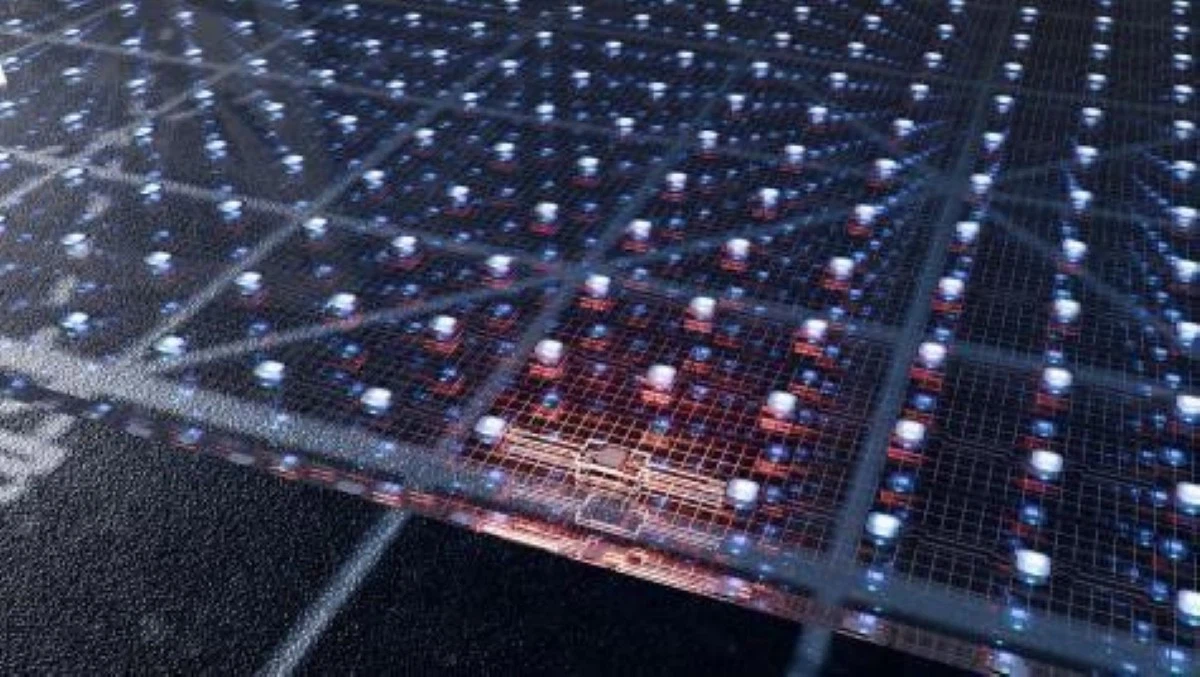

The P20 portable flexible transparent film display boasts standout advantages: it resumes transmission seamlessly after interruption, ensuring uninterrupted operation. With independently developed lamp-drive integration, it delivers high reliability, leading the industry-ideal for stable, hassle-free use in diverse scenarios, enhancing efficiency and user experience.
Product Application

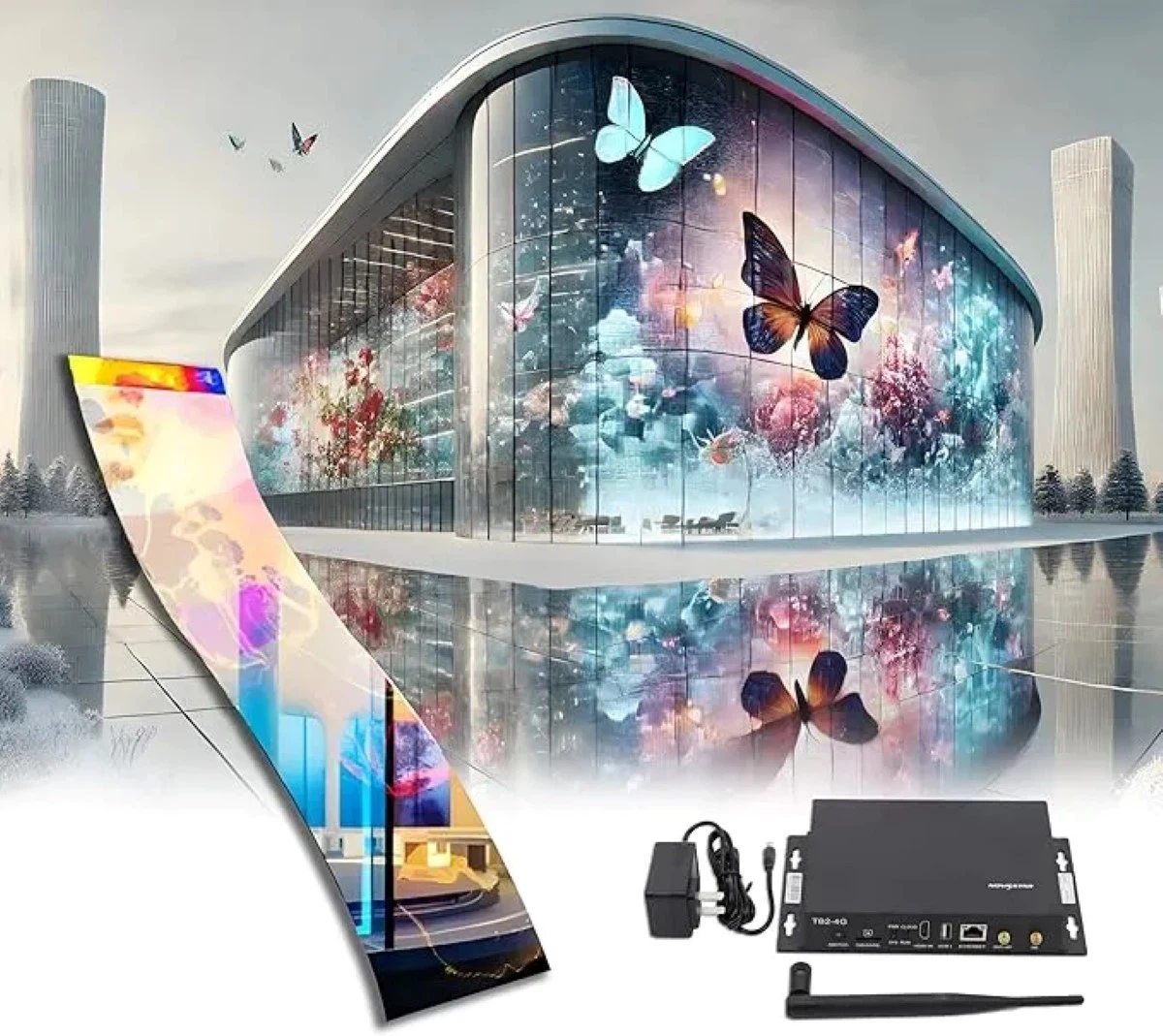

The P5 LED Flexible Transparent Film Screen excels in diverse scenarios. In retail windows, its 90%+ transparency doesn't block natural light while showcasing dynamic ads. On building glass facades, it's lightweight (5kg/㎡) and thin (2.0mm), blending aesthetics without affecting structure. For indoor partitions, its flexibility adapts to curves, keeping spaces open yet informative. Easy installation saves time-ideal for quick upgrades.
FAQ
Q1: What are the advantages of transparent film screens over conventional LED screens?
A1: Transparency: Light transmittance reaches up to 95% (large-pitch models), significantly higher than traditional box-type screens.
Easy Installation: No steel frame required, direct attachment to glass reduces installation time by over 60%.
Energy Saving: Power consumption is less than 280W/㎡, 30% lower than traditional LED screens.
Q2: What is the operating temperature range?
A2: It supports extreme temperatures ranging from -30°C to 70°C, suitable for most climate zones worldwide.
Q3: Does applying the film affect the light transmittance of the glass?
A3: No. The non-display area is hollowed out, and the light transmittance is close to that of unfilmed glass.
