Our Common Cathode Energy Saving LED Display feature a premium die-cast aluminum enclosure that integrates waterproof, fireproof, and dustproof protection while delivering exceptional heat dissipation and high-temperature resistance. Engineered specifically for extreme harsh environments, these modules maintain stable operation and ensure device reliability when facing freezing cold or scorching heat, dust/sand storms, torrential rains, high-humidity/salt-corrosive environments, or unexpected impacts and vibrations.
Our Common Cathode Energy Saving LED displays offer a variety of cabinet sizes, including 960x960mm, 640x960mm, 640x640mm, and 960x640mm, all constructed from sturdy die-cast aluminum. The fully enclosed aluminum back shell protects exposed components, extending the screen's lifespan by 3-6 times compared to conventional displays, thereby significantly reducing maintenance and repair costs.
Product Specification
|
Item |
FA3.81 |
FA5.33 |
|
Pixel Composition(SMD) |
1921 |
1921 |
|
Pixel Pitch(mm) |
3.81 |
5.33 |
|
Module Resolution(W×H) |
84×84 |
60×60 |
|
Module Size(mm) |
320×320×10 |
|
|
Module Weight(kg) |
1.58 |
|
|
Module Qty/Cabinet(W×H) |
3×3 |
|
|
Cabinet Resolution(W×H) |
252×252 |
180×180 |
|
Cabinet Size(mm) |
960×960×115 |
|
|
Cabinet Area(㎡) |
0.92 |
|
|
Cabinet Weight(kg/cabinet) |
35 |
|
|
Cabinet Material |
iron cabinet |
|
|
Cabinet Density(dot/m²) |
68889 |
35201 |
|
IP Rating |
IP65 |
|
|
White Balance Brightness(nits) |
≥5000 |
≥5000 |
|
Color Processor(bit) |
14 |
16 |
|
Color Temperature(K) |
6500-9000 |
|
|
Visual Angle(H/V) |
140°/ 120° |
|
|
Luminous point centre deviation |
＜3% |
|
|
Luminance uniformity |
≥97% |
|
|
Chromaticity uniformity |
Within ±0.003Cx, Cy |
|
|
Contrast Ratio |
5000：1 |
|
|
The Max Power Consumption(W/㎡) |
800 |
800 |
|
Average Power Consumption(W/㎡) |
265 |
265 |
|
Input Voltage |
AC100~240V |
|
|
Frequency(Hz) |
50&60 |
|
|
IC Driving(s) |
1/14 |
1/6 |
|
Refreshing Ratio(Hz) |
3840 |
|
|
Maintenance Method |
Front and Rear |
|
|
Lifespan(hrs) |
100,000 |
|
|
Work Temperature/Humidity |
-40℃-80℃/10%RH-98%RH (Non Condensing) |
|
|
Storage Temperature/Humidity |
-20℃-60℃/10%RH-98%RH (Non Condensing) |
|
|
Item |
FA6.67 |
FA8 |
FA10 |
|
Pixel Composition(SMD) |
2727 |
2727 |
2727 |
|
Pixel Pitch(mm) |
6.67 |
8 |
10 |
|
Module Resolution(W×H) |
48×48 |
40×40 |
32×32 |
|
Module Size(mm) |
320×320×10 |
||
|
Module Weight(kg) |
1.55 |
||
|
Module Qty/Cabinet(W×H) |
3×3 |
||
|
Cabinet Resolution(W×H) |
144×144 |
120×120 |
96×96 |
|
Cabinet Size(mm) |
960×960×115 |
||
|
Cabinet Area(㎡) |
0.92 |
||
|
Cabinet Weight(kg/cabinet) |
35 |
||
|
Cabinet Material |
iron cabinet |
||
|
Cabinet Density(dot/m²) |
22500 |
15625 |
10000 |
|
IP Rating |
IP65 |
||
|
White Balance Brightness(nits) |
≥5000 |
≥5000 |
≥6000 |
|
Color Processor(bit) |
16 |
||
|
Color Temperature(K) |
6500-9000 |
||
|
Visual Angle(H/V) |
140°/ 120° |
||
|
Luminous point centre deviation |
＜3% |
||
|
Luminance uniformity |
≥97% |
||
|
Chromaticity uniformity |
Within ±0.003Cx, Cy |
||
|
Contrast Ratio |
5000：1 |
||
|
The Max Power Consumption(W/㎡) |
550 |
550 |
550 |
|
Average Power Consumption(W/㎡) |
185 |
185 |
185 |
|
Input Voltage |
AC100~240V |
||
|
Frequency(Hz) |
50&60 |
||
|
IC Driving(s) |
1/6 |
1/5 |
1/2 |
|
Refreshing Ratio(Hz) |
3840 |
3840 |
3840 |
|
Maintenance Method |
Front and Rear |
||
|
Lifespan(hrs) |
100,000 |
||
|
Work Temperature/Humidity |
-40℃-80℃/10%RH-98%RH (Non Condensing) |
||
|
Storage Temperature/Humidity |
-20℃-60℃/10%RH-98%RH (Non Condensing) |
||
Product Advantages
With a refresh rate of up to 3840Hz, this outdoor Common Cathode LED display ensures smooth and flicker-free motion even for fast-moving content. It performs excellently under direct sunlight and is ideal for high-speed advertising and dynamic video playback.
Featuring 16-bit high grayscale processing, the screen delivers exceptionally smooth color transitions and rich detail in both dark and bright areas. This enhances depth and realism, making images appear more natural and vivid.
The Common Cathode design combined with black LEDs and a dark cabinet significantly improves contrast, delivering deeper blacks and brighter whites. This ensures sharp and compelling visuals even in bright outdoor environments.

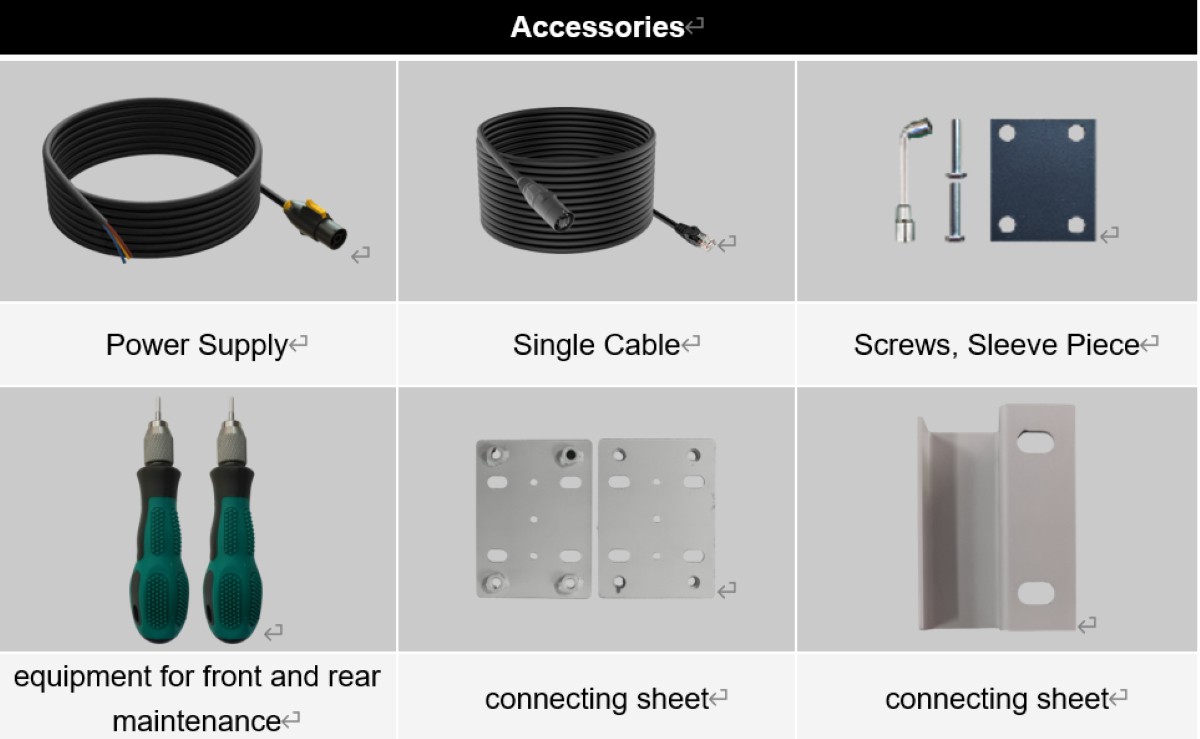

Accessories
Production Equipment
Our factory features advanced equipment: 12 fully automated SMT lines, 8 modular assembly lines, and precision testing gear like spectrometers and waterproof testers. Full-process QC covers raw material checks to final inspections. Real-time digital management ensures 100,000㎡ annual output, with stable batch performance for bulk customization.
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a Professional display manufacturer which has specialized in led display industry. Welcome to visit our factory.
Q2: How does your factory do regarding quality control?
A2: Quality is priority. Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 3 or 5years warranty to our products.
