When choosing sport stadium perimeter LED screens, you'll value visibility, sturdiness, and adaptability. The Outdoor Stadium Led Display's 7000nits high brightness penetrates direct sunlight, ensuring real-time scores and ads are clear to fans in the stands or farther away.
A 140° wide viewing angle reaches every seat, while the IP66 waterproof/dustproof build holds up against rain and high winds. With a 3840Hz high refresh rate, fast-changing live matches and ad rotations stay flicker-free. Die-cast aluminum boosts heat dissipation, keeping it stable from -40℃ to 80℃, with a 100,000+ hour lifespan. It requires minimal upkeep and lets you update content effortlessly.

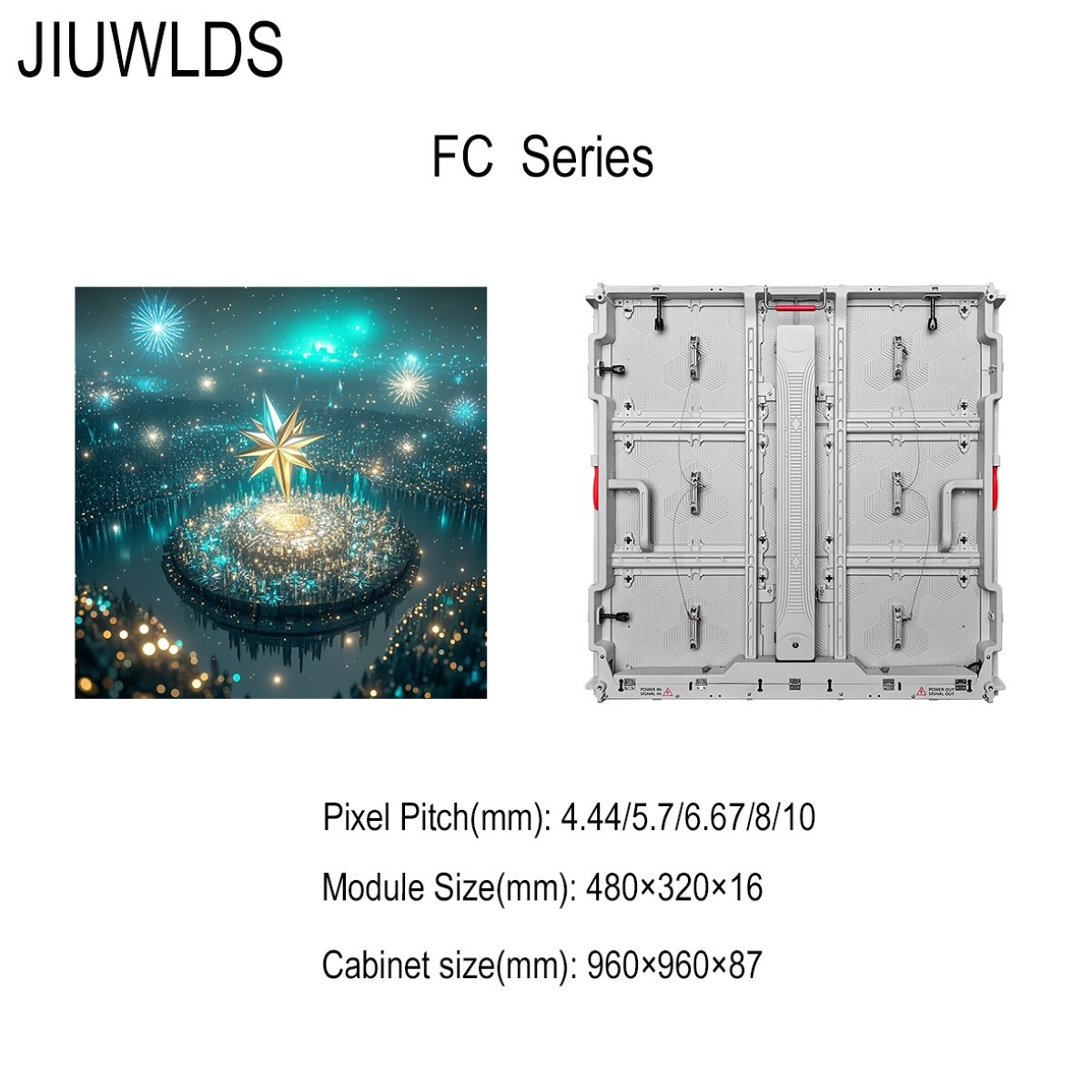

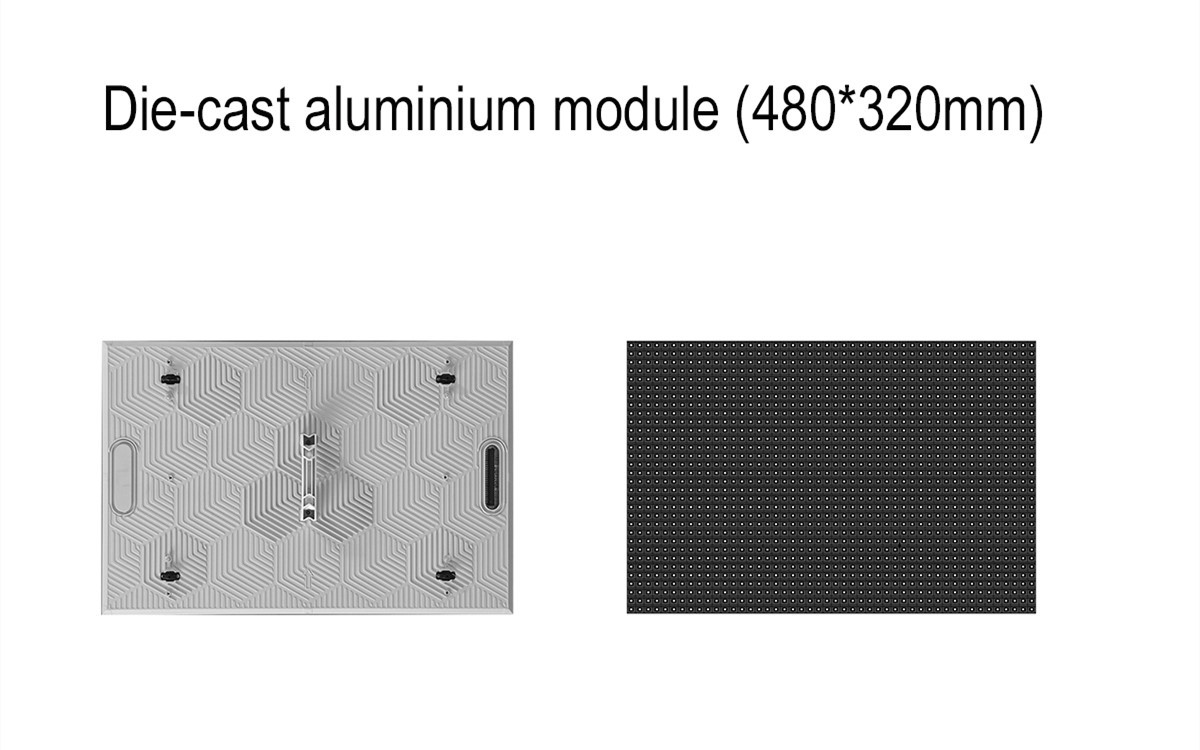

When choosing outdoor stadium perimeter LED displays, you'll care about easy installation and durability. This one feature 480*320mm die-cast aluminum modules with 960*960mm cabinets-precision alignment keeps splicing gaps under 0.5mm, ensuring seamless visuals visible from all stands, whether for match replays or ads.
The tough die-cast aluminum resists impacts, withstanding strong winds, heavy rain, and accidental bumps. It stays stable even in -40℃ to 80℃ extremes, cools fast to avoid overheating, and lasts over 100,000 hours. Individual modules are replaceable, so maintenance won't disrupt events-truly reliable for long-term use.
Product Specification
|
Item |
FC4.44 |
FC5.7 |
FC6.67 |
FC8 |
FC10 |
|
Pixel Composition(SMD) |
1921 |
2727 |
2727 |
2727 |
2727 |
|
Pixel Pitch(mm) |
4.44 |
5.7 |
6.67 |
8 |
10 |
|
Module Resolution(W×H) |
108×72 |
84×56 |
72×48 |
60×40 |
48×32 |
|
Module Size(mm) |
480×320×14 |
480×320×15 |
480×320×16 |
480×320×17 |
480×320×17 |
|
Module Weight(kg) |
2 |
||||
|
Module Qty/Cabinet(W×H) |
2×3 |
||||
|
Cabinet Resolution(W×H) |
216×216 |
168×168 |
144×144 |
120×120 |
96×96 |
|
Cabinet Size(mm) |
960×960×85 |
960×960×86 |
960×960×87 |
960×960×88 |
960×960×88 |
|
Cabinet Area(㎡) |
0.92 |
||||
|
Cabinet Weight(kg/cabinet) |
25 |
||||
|
Cabinet Material |
Die-cast Aluminium |
||||
|
Cabinet Density(dot/m²) |
50625 |
30625 |
22500 |
15625 |
10000 |
|
IP Rating |
IP66 |
||||
|
White Balance Brightness(nits) |
≥5500 |
≥7000 |
≥7000 |
≥7000 |
≥7000 |
|
Color Processor(bit) |
16 |
||||
|
Color Temperature(K) |
6500-9000 |
||||
|
Visual Angle(H/V) |
140°/ 120° |
||||
|
Luminous point centre deviation |
＜3% |
||||
|
Luminance uniformity |
≥97% |
||||
|
Chromaticity uniformity |
Within ±0.003Cx, Cy |
||||
|
Contrast Ratio |
≥15000:1 |
||||
|
The Max Power Consumption(W/㎡) |
550 |
550 |
550 |
550 |
550 |
|
Average Power Consumption(W/㎡) |
186 |
186 |
186 |
186 |
186 |
|
Input Voltage |
AC100~240V |
||||
|
Frequency(Hz) |
50&60 |
||||
|
IC Driving(s) |
1/9 |
1/7 |
1/6 |
1/3 |
1/2 |
|
Refreshing Ratio(Hz) |
3840 |
||||
|
Maintenance Method |
Front and Rear |
||||
|
Lifespan(hrs) |
100,000 |
||||
|
Work Temperature/Humidity |
-40℃-80℃/10%RH-98%RH (Non Condensing) |
||||
|
Storage Temperature/Humidity |
-20℃-60℃/10%RH-98%RH (Non Condensing) |
||||
Product Advantages
Outdoor stadium Led Displays have sturdy rolling casters, making moving and reconfiguring easy. This design cuts labor and time a lot in setup and layout changes-even last-minute shifts are handled quickly by a small team. Great for flexible events, it's handy and efficient.
Outdoor stadium LED displays stand up to harsh conditions, running steadily even in -40°C to 80°C extremes. Their tough build ensures sharp visuals in downpours, sweltering heat, fitting year-round global events with no mid-event glitches.
Product Application
FAQ
Q1: What is "common cathode drive" technology?
A1: The red, green and blue lamp beads are powered separately (the traditional common anode is powered uniformly), power consumption is reduced by 35%, the color is purer, but the cost is 20% higher.
Q2: What are the differences between the front maintenance and rear maintenance structures?
A2: The front maintenance screen supports the front disassembly of the module (saving space), but the cost is 15% higher; the rear maintenance requires an 80cm maintenance channel (conventional choice).
Q3: Can it be used with foreign voltage?
A3: It supports 100-240V global voltage (US standard plug requires a converter).
