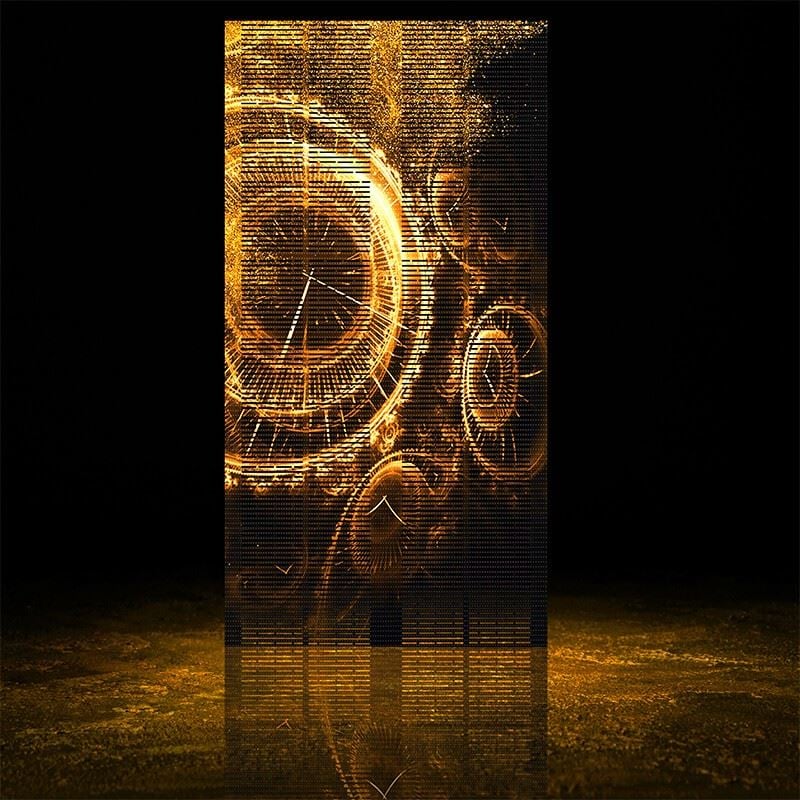

LED Net Screen is a transparent outdoor display solution designed for large-area advertising and architectural media applications. Unlike traditional solid LED screens, the display adopts an open-grid structure that reduces wind resistance while maintaining visibility from long viewing distances.
The LED Net Screen supports pixel pitches from P7.81×15.625mm to P31.25×31.25mm and is commonly installed on shopping malls, commercial buildings, stadium exteriors, transportation hubs, and glass curtain walls.
With an aluminum profile cabinet structure, IP65 protection rating, and front & rear maintenance design, it is suitable for long-term outdoor operation.
What Is Outdoor LED Net Screen?

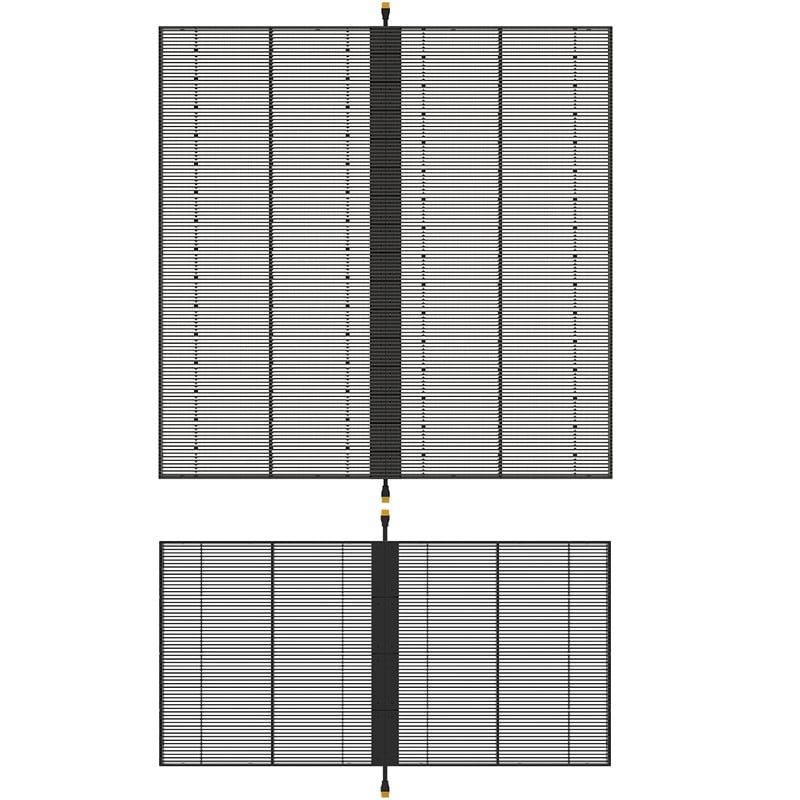

An LED Net Screen, also known as an LED Grille Screen or Outdoor Mesh LED Display, is a lightweight display system composed of aluminum frames and LED light bars.
Compared with conventional outdoor LED billboards, the screen maintains a high level of transparency, allowing airflow and natural light to pass through the structure.
This makes it particularly suitable for projects where building load, installation space, and facade appearance are important considerations.
As a China LED Net Screen manufacturer, we frequently supply this type of display for shopping mall facades, building advertising projects, and large-scale outdoor media networks.
Key Features
The LED Net Screen is available in multiple pixel pitch options to accommodate different viewing distances and project requirements.
Standard models include:
| Model | Pixel Pitch |
|---|---|
| KS7.81-15.6 | 7.81×15.625mm |
| KS15.6-15.6 | 15.625×15.625mm |
| KS15.6-31.25 | 15.625×31.25mm |
| KS31.25-31.25 | 31.25×31.25mm |
Brightness ranges from 2500 to 7300 nits depending on configuration, ensuring visibility under outdoor daylight conditions. Refresh rates up to 3840Hz support smooth video playback for commercial advertising and media applications.
The cabinet adopts:
- SMD3535 LEDs
- Silicone waterproof encapsulation
- Aluminum frame structure
- UV-resistant surface treatment
- Natural heat dissipation
These features help reduce maintenance requirements while supporting long-term outdoor operation.
Designed For Easier Installation
For large outdoor projects, installation efficiency often affects overall project costs.
The KS Series uses standardized cabinet sizes:
- 1000×250mm
- 1000×500mm
This modular structure allows contractors to assemble large display surfaces more efficiently while simplifying future maintenance and replacement work.
Both front and rear maintenance are supported, making the system suitable for different installation environments.
How To Choose The Right Model
Selecting the correct LED Net Screen specification depends primarily on viewing distance.
For shopping malls and commercial streets where audiences are closer to the display, P7.81×15.625mm is commonly selected.
For large building facades and roadside advertising projects, P15.625×31.25mm and P31.25×31.25mm are often more cost-effective because viewers observe the display from greater distances.
Our engineering team can recommend suitable specifications according to installation height, screen dimensions, and viewing requirements.

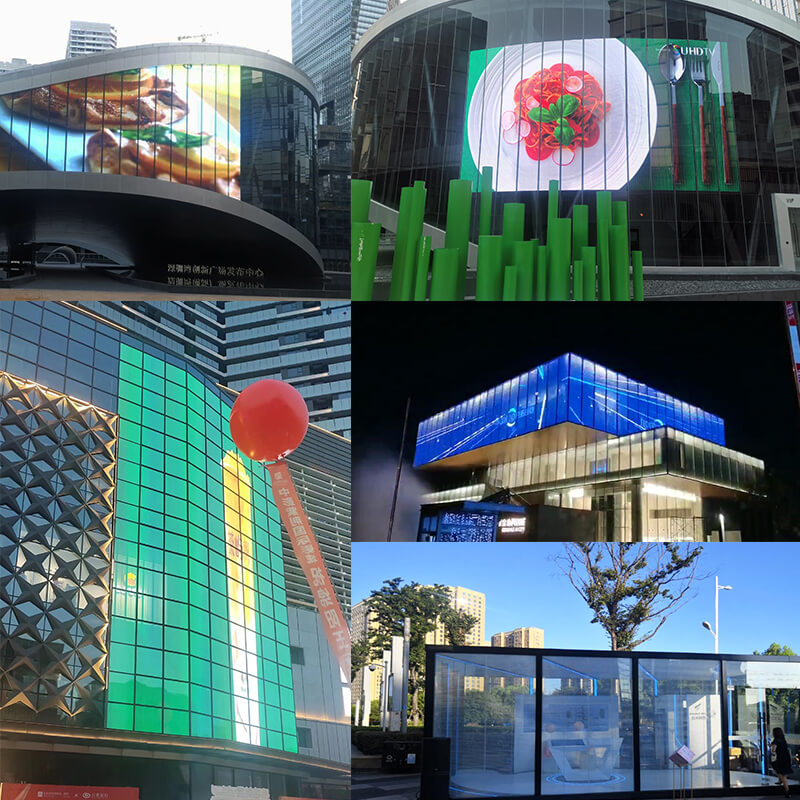

Typical Applications
Outdoor LED Net Screens are widely used in:
- Commercial building facades
- Shopping mall exterior advertising
- Glass curtain wall media displays
- Sports venue branding
- Airport advertising systems
- Transportation hubs
- City landmark media projects
In recent years, transparent media facade projects have become increasingly common in commercial developments where developers seek to combine digital advertising with architectural design.
Why Work With LED Display Leader?
We provide customized LED display manufacturing services for advertising companies, system integrators, and project contractors worldwide.
Every display undergoes a 72-hour aging test before shipment.
Our products comply with CE, FCC, and RoHS standards and support OEM & ODM customization according to project requirements.
For large-volume projects, customized cabinet structures, pixel pitches, and installation solutions are available.
FAQ
Q: Is an LED Net Screen suitable for outdoor use?
A: Yes. The KS Series features an IP65 protection rating and waterproof silicone encapsulation designed for outdoor environments.
Q: What is the transparency rate?
A: Depending on the selected model, transparency ranges up to 55%.
Q: Can the display be customized?
A: Yes. As a customized LED Net Screen supplier, we support project-based customization for cabinet dimensions, screen size, and installation methods.

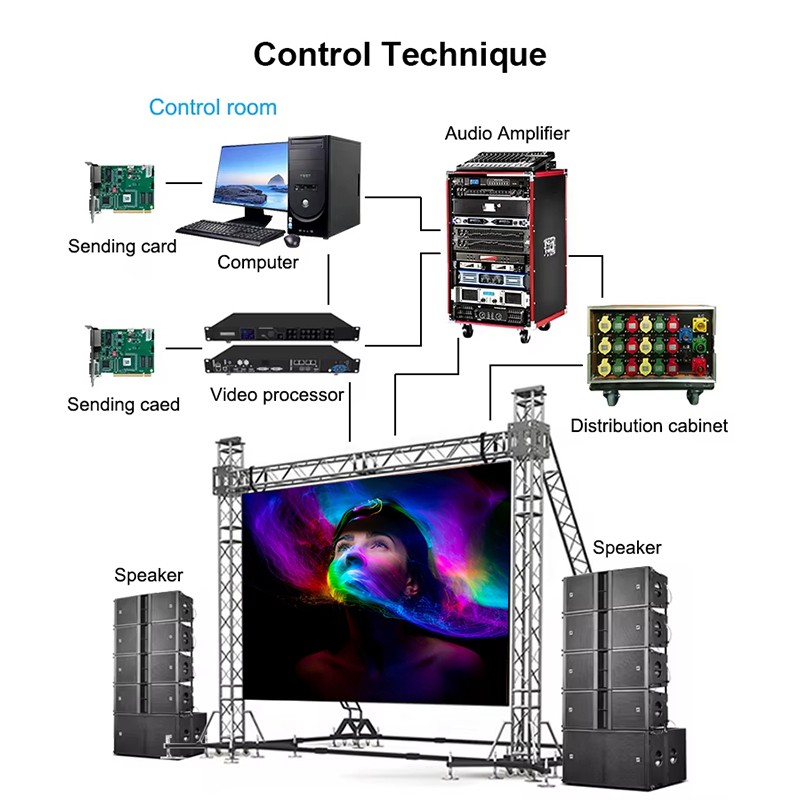

Q: What control systems are supported?
A: The display is compatible with both NovaStar and Colorlight control systems.
