Product Introduction
The Indoor LED Rental Display Exhibition series is engineered for professional event companies that require fast setup, stable performance, and vibrant image quality. Whether used at trade fairs, corporate meetings, or stage presentations, the Indoor LED Rental Display Exhibition delivers a clean visual surface, accurate color reproduction, and seamless cabinet alignment. With a service life of 100000 hours and a durable frame structure, it adapts to long working schedules and frequent transportation. As one of the reliable China Indoor LED Rental Display Exhibition suppliers, we provide flexible sizes and Customized Indoor LED Rental Display Exhibition solutions to meet various venue layouts. This series supports high refresh rates and consistent brightness, ensuring every message is presented clearly to the audience.
Product Details

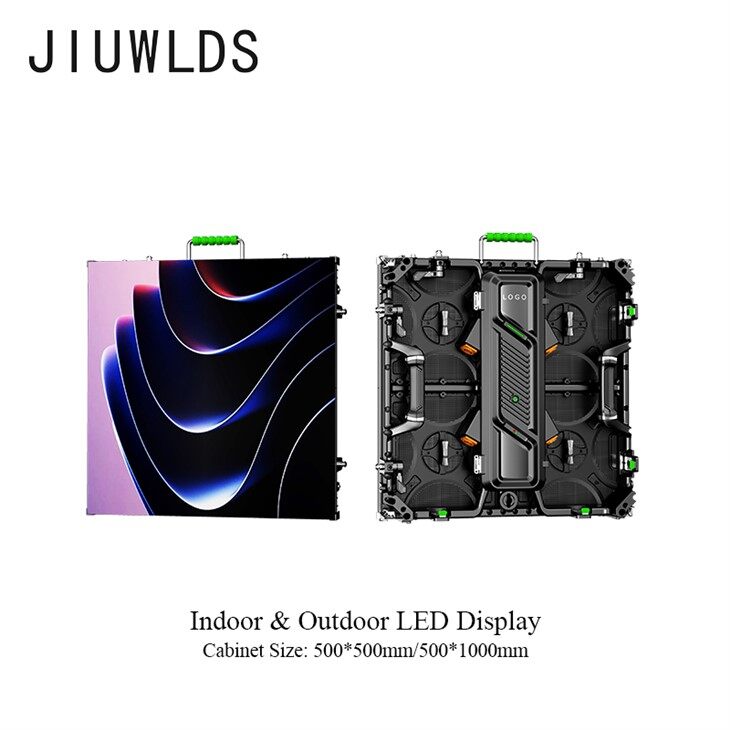

Our rental display adopts lightweight die-cast aluminum cabinets, ensuring stable operation during long events. Each cabinet locks tightly using anti-loosening connectors, maintaining smooth seams even after repeated installations. The LED modules feature uniform color calibration and a reinforced PCB board for safer indoor performance. It supports front or rear access, and the power box can be detached independently for quick replacement. All components are designed to handle continuous touring, conference setups, and rapid transitions between venues.
Product Features
- High refresh rate for flawless camera performance
- Uniform brightness and color accuracy across the entire wall
- Lightweight frame for easier handling
- Quiet power system suitable for conference environments
- Flexible configuration for different stage layouts
Indoor Specification
|
Module |
Item |
Parameter |
|||
|
Type |
P1.953-32S |
P2.604-32S |
P2.976-28S |
P3.91-16S |
|
|
Module size |
250mm*250mm |
||||
|
Pixel pitch |
1.953mm |
2.604mm |
2.976mm |
3.91mm |
|
|
Pixels Density |
262144 dots/m2 |
147456 dots/m2 |
112896 dots/m2 |
65536 dots/m2 |
|
|
Pixel configuration |
1R1G1B |
||||
|
LED |
SMD1515 |
SMD1515 |
SMD2020 |
SMD2020 |
|
|
Pixel resolution |
128dots(W)*128 dots(H) |
96dots(W)*96 dots(H) |
84dots(W)*84 dots(H) |
64dots(W)*64 dots(H) |
|
|
Max Power |
27W |
25W |
|||
|
Module Weight |
0.3kg |
0.45kg |
0.45kg |
0.45kg |
|
|
Cabinet Weight |
10.6kg/8.8kg |
||||
|
Drive type |
Constant drive |
||||
|
Scan mode |
1/32scan |
1/32scan |
1/28scan |
1/16scan |
|
|
Brightness of white balance |
≥600cd/m2 |
≥800cd/m2 |
|||
|
Cabinet |
Cabinet Dimension |
500mm*1000mm/500mm*500mm |
|||
|
Power supply |
5V/40A*2pcs/5V/40A*1pcs |
||||
|
Pixel per cabinet |
256*512/256*256 |
192*384/192*192 |
168*336/168*168 |
128*256/128*128 |
|
|
Best viewing distance |
5M～20M |
||||
|
Best viewing angle |
160 °(W) 120 °(H) |
||||
|
Temperature |
storage:-35℃~+85℃ working:-20℃~+50℃ |
||||
Product Advantages
1. Front & Rear Maintenance
The display allows technicians to perform module, power box, and control card replacement from either the front or rear, giving more flexibility during urgent adjustments. This dual-access structure helps event teams handle unexpected issues quickly, especially in limited space venues such as small stages or exhibition booths. It minimizes downtime and keeps the event running smoothly.
2. Edge Protection Design
Each cabinet is equipped with an integrated edge protection mechanism that keeps the LED pixels safe when units are transported or stacked. This greatly reduces accidental collisions during frequent rental operations. The added protection is especially valuable for companies offering long-term rental services, ensuring the display maintains high visual quality over years of use.
3. Stable Locking System
The locking system adopts reinforced connectors that withstand continuous installation cycles. Even after hundreds of setups, the cabinets remain tightly aligned without light leaks. This stability is essential for stage events where large screens must maintain their shape during long show hours, allowing the wall to present smooth visuals from every angle.
4. Touring-Grade Power Box
The power supply unit uses a modular structure that can be replaced within minutes. Designed for high reliability, it maintains consistent output to prevent brightness fluctuations. Event teams benefit from reduced maintenance time, while rental companies achieve a higher return on investment thanks to the power box's extended durability.
5. High-Precision Cabinet Structure
Every cabinet is CNC-milled to ensure a stable, seamless surface. This precision enhances the viewing experience during high-end exhibitions, car shows, and corporate launches. The structure also improves module alignment, reducing color shifts and maintaining uniformity across large video walls.
Product Installation

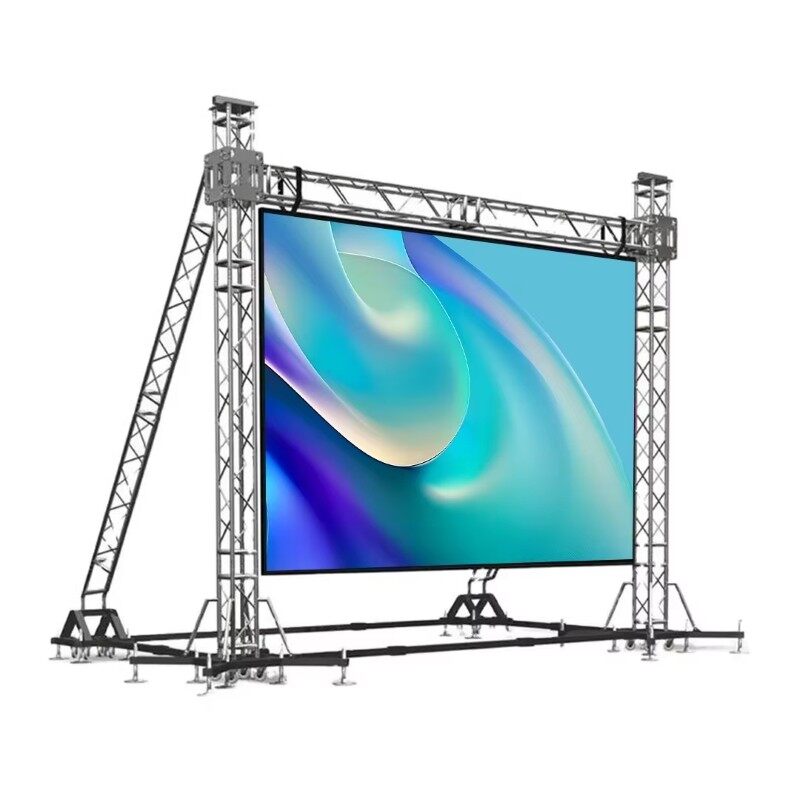

The display supports hanging, stacking, and ground-support installation. Standard quick-locks allow two technicians to finish a large wall in a short time. The lightweight design reduces labor intensity, and the built-in alignment pins help teams achieve a smooth surface without repeated adjustments. It integrates easily with truss systems, rental frames, and stage lifting structures.
Our Services
- 24/7 technical support and remote assistance
- Customized Indoor LED Rental Display Exhibition solutions
- Engineering design and installation guidance
- Spare parts supply and long-term maintenance
- OEM/ODM service for global distributors
- Fast delivery for wholesale Indoor LED Rental Display Exhibition orders
FAQ
Q: 1. How long is the lifespan of your indoor rental LED display?
A: The display is designed for a working lifespan of 100000 hours, supported by stable LED chips and reliable power components.
Q: 2. Can you support unusual stage shapes or customized sizes?
A: Yes, we offer Customized Indoor LED Rental Display Exhibition options, including curved walls, creative shapes, and mixed resolutions.
Q: 3. Are your products suitable for frequent rental handling?
A: The cabinets are built for touring conditions with reinforced edges, stable locks, and durable module structures, making them ideal for companies that perform constant setups and dismantling.
